Picture of QX, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 2000NM 1" SQ

QX, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 2000NM 1" SQ

IR QXXD2PT20CPM16

IR QXXD2PT20CPM16

QX, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 2000NM 1" SQ
Call for pricing
Picture of QX BT 802154 6000NM 40V DISPLAY PISTOL

QX BT 802154 6000NM 40V DISPLAY PISTOL

IR QXXD5PT60CPM24

IR QXXD5PT60CPM24

QX BT 802154 6000NM 40V DISPLAY PISTOL
Call for pricing
Picture of BACKCAP ASSEMBLY, 20V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD

BACKCAP ASSEMBLY, 20V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD

IR QXXN2AT000P000

IR QXXN2AT000P000

BACKCAP ASSEMBLY, 20V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD
Call for pricing
Picture of BACKCAP ASSEMBLY, 20V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, ETS

BACKCAP ASSEMBLY, 20V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, ETS

IR QXXN2AT000E000

IR QXXN2AT000E000

BACKCAP ASSEMBLY, 20V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, ETS
Call for pricing
Picture of QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V ANGLE 18 NM STANDARD QUICK CONNECT 1/4 INCH

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V ANGLE 18 NM STANDARD QUICK CONNECT 1/4 INCH

IR QXXN2AT018PQ04

IR QXXN2AT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
  • Offer option for Insight Connect Android APP LINK
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C
Call for pricing
Picture of QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V ANGLE 5 NM STANDARD QUICK CONNECT 1/4 INCH

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V ANGLE 5 NM STANDARD QUICK CONNECT 1/4 INCH

IR QXXN2AT005PQ04

IR QXXN2AT005PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 44 in-lb Torque, 1213 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
  • Offer option for Insight Connect Android APP LINK
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1213
Max Torque (ft-lb): 3.7
Max Torque (in-lb): 44
Max Torque (nm): 5
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.5
Recommended Forward Torque Range (ft-lb): 0.7-3.7
Recommended Forward Torque Range (in-lb): 8.9-44
Recommended Forward Torque Range (nm): 1.0-5
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.36
Side to Center Distance (mm): 9
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C
Call for pricing
Picture of BACKCAP ASSEMBLY, 20V PISTOL, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD

BACKCAP ASSEMBLY, 20V PISTOL, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD

IR QXXN2PT000P000

IR QXXN2PT000P000

BACKCAP ASSEMBLY, 20V PISTOL, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD
Call for pricing
Picture of QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 8 NM ETS QUICK CONNECT 1/4 INCH

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 8 NM ETS QUICK CONNECT 1/4 INCH

IR QXXN2PT008EQ04

IR QXXN2PT008EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
  • Offer option for Insight Connect Android APP LINK
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
  • Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
  • Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
  • Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
  • In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
  • Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
  • Performance Mode: with medium energy pulses, is the best all-purpose mode.
  • Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Call for pricing
Picture of QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 12 NM ETS SQUARE 3/8 INCH

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 12 NM ETS SQUARE 3/8 INCH

IR QXXN2PT012ES06

IR QXXN2PT012ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
  • Offer option for Insight Connect Android APP LINK
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
  • Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
  • Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
  • Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
  • In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
  • Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
  • Performance Mode: with medium energy pulses, is the best all-purpose mode.
  • Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Call for pricing
Picture of QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 8 NM ETS SQUARE 3/8 INCH

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 8 NM ETS SQUARE 3/8 INCH

IR QXXN2PT008ES06

IR QXXN2PT008ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
  • Offer option for Insight Connect Android APP LINK
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
  • Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
  • Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
  • Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
  • In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
  • Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
  • Performance Mode: with medium energy pulses, is the best all-purpose mode.
  • Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Call for pricing
Picture of QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 24 NM ETS SQUARE 3/8 INCH

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 20V PISTOL 24 NM ETS SQUARE 3/8 INCH

IR QXXN2PT024ES06

IR QXXN2PT024ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 212 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
  • Offer option for Insight Connect Android APP LINK
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
  • Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
  • Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
  • Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
  • In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
  • Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
  • Performance Mode: with medium energy pulses, is the best all-purpose mode.
  • Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 18
Max Torque (in-lb): 212
Max Torque (nm): 24
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): -
Recommended Forward Torque Range (in-lb): -
Recommended Forward Torque Range (nm): 4.8 – 24
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User I
Call for pricing

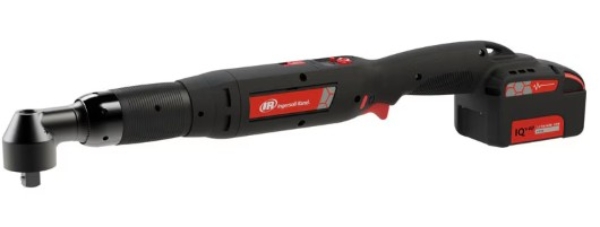

IR QXXN5AT030PS06.jpg

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 40V ANGLE 20 NM STANDARD SQUARE 3/8 INCH

IR QXXN5AT020PS06

IR QXXN5AT020PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 177 in-lb Torque, 1045 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
  • Offer option for Insight Connect Android APP LINK.
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1045
Max Torque (ft-lb): 15
Max Torque (in-lb): 177
Max Torque (nm): 20
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.74
Product Height (in): 3.94
Product Weight (lb): 4.5
Recommended Forward Torque Range (ft-lb): 3.0-15
Recommended Forward Torque Range (in-lb): 35-177
Recommended Forward Torque Range (nm): 4.0-20
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.52
Side to Center Distance (mm): 13
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C
Call for pricing
Picture of CABLE 16AWG X4 SOOW

CABLE 16AWG X4 SOOW

IR R000.1211.4

IR R000.1211.4

CABLE 16AWG X4 SOOW
$15.00
Picture of QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 40V ANGLE 40 NM STANDARD SQUARE 1/2 INCH

QX ZIGBEE AND BLUETOOTH, NO DISPLAY, 40V ANGLE 40 NM STANDARD SQUARE 1/2 INCH

IR QXXN5AT040PS08

IR QXXN5AT040PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 354 in-lb Torque, 545 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits
  • Now Comes with 32 programmable tightening configuration.
  • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
  • Enhanced quantitative feedback – displaying the actual measured torque or angle result.
  • 1,200 cycles of onboard tightening data storage.
  • Configurable preventative maintenance alarms.
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
  • The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
  • Offer option for Insight Connect Android APP LINK.
  • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
  • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.


Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 545
Max Torque (ft-lb): 30
Max Torque (in-lb): 354
Max Torque (nm): 40
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 5.9-30
Recommended Forward Torque Range (in-lb): 71-354
Recommended Forward Torque Range (nm): 8.0-40
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C
Call for pricing
Picture of TAP CHUCK

TAP CHUCK

IR R000AR2TM-199

IR R000AR2TM-199

TAP CHUCK
$532.00
Picture of BAG BRACKET

BAG BRACKET

IR R000.8993

IR R000.8993

BAG BRACKET
$197.00
Picture of SHAFT

SHAFT

IR R000B-191

IR R000B-191

SHAFT
$58.00
Picture of WEDGE

WEDGE

IR R000AR2TM-200

IR R000AR2TM-200

WEDGE
$20.00
Picture of SPRING

SPRING

IR R000B-51

IR R000B-51

SPRING
$11.00
Picture of KEY (7802-253)

KEY (7802-253)

IR R000B2J70-J253

IR R000B2J70-J253

KEY (7802-253)
$15.00
Picture of END PLATE

END PLATE

IR R00A1-12

IR R00A1-12

END PLATE
$82.00
Picture of BUSHING

BUSHING

IR R00-282

IR R00-282

BUSHING
$89.00
Picture of GEAR

GEAR

IR R00A1Q-A9A

IR R00A1Q-A9A

GEAR
$89.00
Picture of GEAR HEAD

GEAR HEAD

IR R00A1Q-216

IR R00A1Q-216

GEAR HEAD
$455.00
Picture of PIN

PIN

IR R00A-74

IR R00A-74

PIN
$15.00
Picture of CYLINDER (R00B2J61-3)

CYLINDER (R00B2J61-3)

IR R00A-3

IR R00A-3

CYLINDER (R00B2J61-3)
$310.00
Picture of CHUCK KEY

CHUCK KEY

IR R00A-J253

IR R00A-J253

CHUCK KEY
$17.00
Picture of DRILL CHUCK 0-1/4" CAP 3

DRILL CHUCK 0-1/4" CAP 3

IR R00A-99

IR R00A-99

DRILL CHUCK 0-1/4" CAP 3
$60.00
Picture of TRIGGER SPRING

TRIGGER SPRING

IR R00AR1C-268

IR R00AR1C-268

TRIGGER SPRING
$53.00
Picture of LOCK SCREW

LOCK SCREW

IR R00AR2-150

IR R00AR2-150

LOCK SCREW
$15.00
Picture of THROTTLE VALVE SPRING

THROTTLE VALVE SPRING

IR R00AR2C-515

IR R00AR2C-515

THROTTLE VALVE SPRING
$15.00
Picture of RELEASE PIN BUTTON

RELEASE PIN BUTTON

IR R00AR2C-520

IR R00AR2C-520

RELEASE PIN BUTTON
$15.00
Picture of HOUSING

HOUSING

IR R00B2J12-40

IR R00B2J12-40

HOUSING
$970.00
Picture of SPINDLE

SPINDLE

IR R00B2Q56-108

IR R00B2Q56-108

SPINDLE
$610.00
Picture of FLANGE

FLANGE

IR R00B2L56-580

IR R00B2L56-580

FLANGE
$1,750.00
Picture of SPACER

SPACER

IR R00BJ-90B

IR R00BJ-90B

SPACER
$37.00
Picture of GEAR

GEAR

IR R00BL-A10A

IR R00BL-A10A

GEAR
$95.00
Picture of ADAPTER

ADAPTER

IR R00BM-107

IR R00BM-107

ADAPTER
$310.00
Picture of HOSE WHIP ASSEMBLY

HOSE WHIP ASSEMBLY

IR R00H-130

IR R00H-130

HOSE WHIP ASSEMBLY
$54.00
Picture of ROTOR (R00BRLHC)

ROTOR (R00BRLHC)

IR R00BRL-53

IR R00BRL-53

ROTOR (R00BRLHC)
$222.00
Picture of SANDER

SANDER

IR R026B-PSV-1

IR R026B-PSV-1

SANDER
$345.00
Picture of GEAR HEAD

GEAR HEAD

IR R00BM-216

IR R00BM-216

GEAR HEAD
$1,145.00
Picture of VALVE STEM

VALVE STEM

IR R035C-39

IR R035C-39

VALVE STEM
$15.00
Picture of SKIRT

SKIRT

IR R035C-402

IR R035C-402

SKIRT
$15.00
Picture of CYLINDER ASSEMBLY

CYLINDER ASSEMBLY

IR R035C-A3

IR R035C-A3

CYLINDER ASSEMBLY
$22.00
Picture of COVER

COVER

IR R035C-93

IR R035C-93

COVER
$15.00

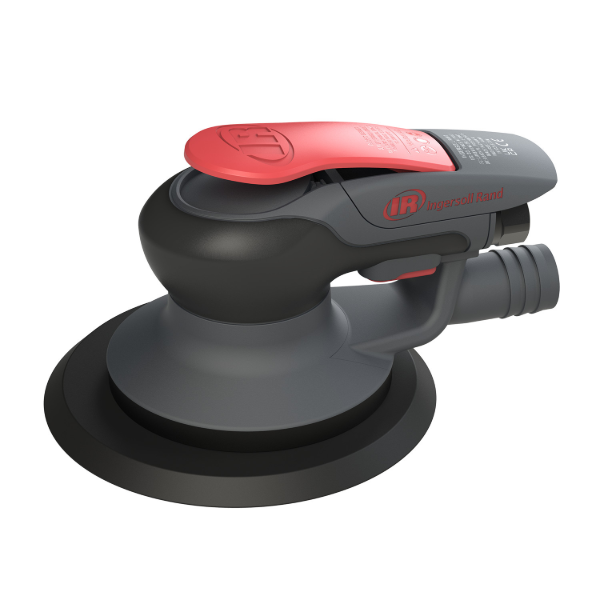

IR R035C-C1.jpg

Sander, 5" Pad, 3/16" Orbit

IR R035C-C1

IR R035C-C1

Random Orbital Air Sander, 3/16" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 5
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.6
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 2
Vibration Uncertainy K* (m/s2): 0.7
Warranty: 1-year

Similar IR
  • 5151-5
  • 4151-5
  • R036C-C1

Supersedes
  • R025B-CLV-1
  • R025B-PSV-1
  • R035A-CSV
  • R025B-CSV-1
  • R035A-PSV-L
$380.00
IR R035C-C1-HL.jpg

SANDER, 5" PAD, 3/16" ORBIT

IR R035C-C1-HL

IR R035C-C1-HL

Random Orbital Air Sander, 3/16" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 5
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 2
Vibration Uncertainy K* (m/s2): 0.7
Warranty: 1-year

Similar IR
  • 5151-5-HL
  • 4151-HL
  • R036C-C1-HL
  • R036C-S1-HL
$380.00
IR R035C-C2.jpg

SANDER, 5" PAD, 3/32" ORBIT

IR R035C-C2

IR R035C-C2

Random Orbital Air Sander, 3/32" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 5
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 2.3
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

Similar IR
  • 5152-5
  • R035C-C1

Supersedes
  • R025B-PSV-2
$380.00
IR R035C-C2-HL.jpg

SANDER, 5" PAD, 3/32" ORBIT

IR R035C-C2-HL

IR R035C-C2-HL

Random Orbital Air Sander, 3/32" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 5
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 2.3
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

Similar IR
  • 5152-5-HL
  • R036C-C2-HL
  • R035C-S2-HL
$380.00
IR R035C-S1.jpg

SANDER, 5" PAD, 3/32" ORBIT

IR R035C-S1

IR R035C-S1

Random Orbital Air Sander, 3/16" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 5
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 2
Vibration Uncertainy K* (m/s2): 0.7
Warranty: 1-year

Similar IR
  • 5151-5
  • 4151-5
  • R036C-S1

Supersedes
  • R025B-VLV-1
$580.00
IR R035C-S1-HL.jpg

SANDER, 5" PAD, 3/16" ORBIT

IR R035C-S1-HL

IR R035C-S1-HL

Random Orbital Air Sander, 3/16" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 5
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 2
Vibration Uncertainy K* (m/s2): 0.7
Warranty: 1-year

Similar IR
  • 5151-5-HL
  • 4151-HL
  • R036C-S1-HL
  • R035C-C1-HL
$575.00
IR R035C-S2.jpg

SANDER, 5" PAD, 3/32" ORBIT

IR R035C-S2

IR R035C-S2

Random Orbital Air Sander, 3/32" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 5
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 2.3
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

Similar IR
  • 5152-5
  • R035C-C2
$575.00
IR R035C-S2-HL.jpg

SANDER, 5" PAD, 3/32" ORBIT

IR R035C-S2-HL

IR R035C-S2-HL

Random Orbital Air Sander, 3/32" Orbit Diameter, 5" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 5
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 5
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 2.3
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

Similar IR
  • 5152-5-HL
  • R036C-S2-HL
  • R035C-C2-HL
$580.00
IR R036C-C1.jpg

SANDER, 6" PAD, 3/16" ORBIT

IR R036C-C1

IR R036C-C1

Random Orbital Air Sander, 3/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.6
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 3.9
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • 5151-6
  • 4151
  • R035C-C1

Supersedes
  • R026B-CSV-1
  • R026B-PSV-1
$380.00
IR R036C-C1-HL.jpg

SANDER, 6" PAD, 3/16" ORBIT

IR R036C-C1-HL

IR R036C-C1-HL

Random Orbital Air Sander, 3/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 3.9
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • 5151-6-HL
  • 4151-HL
  • R035C-C1-HL
  • R036C-S1-HL
$385.00
IR R036C-C2.jpg

SANDER, 6" PAD, 3/32" ORBIT

IR R036C-C2

IR R036C-C2

Random Orbital Air Sander, 3/32" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.6
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 3
Vibration Uncertainy K* (m/s2): 1
Warranty: 1-year

Similar IR
  • 5152-6
  • 4152

Supersedes
  • R026B-PSV-2
$380.00
IR R036C-C3.jpg

SANDER, 6" PAD, 8MM ORBIT

IR R036C-C3

IR R036C-C3

Random Orbital Air Sander, 5/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 5/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 4.6
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • R036C-C3-HL
$390.00
IR R036C-C3-HL.jpg

SANDER, 6" PAD, 8MM ORBIT

IR R036C-C3-HL

IR R036C-C3-HL

Random Orbital Air Sander, 5/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Vacuum Ready, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 5/16
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 80.9/91.9
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 4.6
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • R036C-S3-HL
$380.00
IR R036C-S1.jpg

SANDER, 6" PAD, 3/16" ORBIT

IR R036C-S1

IR R036C-S1

Random Orbital Air Sander, 3/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 3.9
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • 5151-6
  • 4151
  • R035C-S1

Supersedes
  • R026B-VLV-1
$575.00
IR R036C-S1-HL.jpg

SANDER, 6" PAD, 3/16" ORBIT

IR R036C-S1-HL

IR R036C-S1-HL

Random Orbital Air Sander, 3/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 3.9
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • 5151-6-HL
  • 4151-HL
  • R035C-S1-HL
  • R036C-C1-HL
$580.00
IR R036C-S2.jpg

SANDER, 6" PAD, 3/32" ORBIT

IR R036C-S2

IR R036C-S2

Random Orbital Air Sander, 3/32" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 3
Vibration Uncertainy K* (m/s2): 1
Warranty: 1-year

Similar IR
  • 5152-6
  • 4152
$580.00
IR R036C-S2-HL.jpg

SANDER, 6" PAD, 3/32" ORBIT

IR R036C-S2-HL

IR R036C-S2-HL

Random Orbital Air Sander, 3/32" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 3
Vibration Uncertainy K* (m/s2): 1
Warranty: 1-year

Similar IR
  • 5152-6-HL
  • 4152-HL
  • R035C-S2-HL
  • R036C-C2-HL
$580.00
IR R036C-S3-HL.jpg

SANDER, 6" PAD, 8MM ORBIT

IR R036C-S3-HL

IR R036C-S3-HL

Random Orbital Air Sander, 5/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum, Hook & Loop

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 5/16
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 4.6
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • R036C-C3-HL
  • R036C-S3
$580.00
IR R036C-S3.jpg

SANDER, 6" PAD, 8MM ORBIT

IR R036C-S3

IR R036C-S3

Random Orbital Air Sander, 5/16" Orbit Diameter, 6" Vinyl Pad, 13,000 RPM, 0.3 HP, Self-Generating Vacuum

When it comes to sanding and finishing jobs, comfort is as important as power. Put Premium sanding performance in the palm of your hand with the newly designed line of sanders, ergonomically enhanced to provide long-lasting comfort and performance, these sanders have the power to get the job done.

Features And Benefits
  • Performance: A powerful 0.3 HP motor with 13,000 RPM providing plenty of power and performance to get the job done.
  • Ergonomics: A lightweight, contoured construction and extended handle provides additional support to the user’s arm, making high-duration sanding jobs more productive while also providing easier access and comfort across more angles and positions. A recessed paddle design minimizes pinch points, while industry-leading sound and vibration levels further decrease operator fatigue, ensuring a safer experience and longer-lasting performance.


Includes: Tool, Wrench, backing pad, safety manual, Vacuum Hose, Vacuum Bag
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding paint, fiberglass, wood and body filler.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Free Speed (cfm): 17.6
Air Consumption @ Free Speed (l/min): 498.4
Air Consumption @ Load (cfm): 17.6
Air Consumption @ Load (l/min): 498.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Port Size: 26mm end size to connect with the vacuum hose
Dust Collection Type: Insert Vacuum Hose and bag
Duty Rating: Heavy Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 5/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.69
Product Height (in): 4.13
Product Weight (lb): 1.9
Rated Power (hp): 0.3
Rated Power (kW): 0.22
Sound Pressure/Power Db(A): 82.3/93.3
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vacuum: Self-Generating, Vacuum Ready
Vibration Level (m/s2): 4.6
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR
  • R036C-C3-HL
$580.00
Picture of CYLINDER

CYLINDER

IR R0A1-3

IR R0A1-3

CYLINDER
$365.00
Picture of FRONT END PLATE

FRONT END PLATE

IR R0A1-11

IR R0A1-11

FRONT END PLATE
$141.00
Picture of VANE PACK

VANE PACK

IR R0A1-42-5

IR R0A1-42-5

VANE PACK
$54.00
Picture of VANE PACK

VANE PACK

IR R0A1-42-4

IR R0A1-42-4

VANE PACK
$44.00
Picture of PINION

PINION

IR R0AH-17

IR R0AH-17

PINION
$665.00
Picture of ROTOR

ROTOR

IR R0A1H-53

IR R0A1H-53

ROTOR
$365.00
Picture of GEAR SHAFT

GEAR SHAFT

IR R0AJ-191

IR R0AJ-191

GEAR SHAFT
$15.00
Picture of PLATE

PLATE

IR R0B1L63-11

IR R0B1L63-11

PLATE
$355.00
Picture of STRAINER

STRAINER

IR R0B2-A565

IR R0B2-A565

STRAINER
$680.00
Picture of END PLATE

END PLATE

IR R0B1L63-12

IR R0B1L63-12

END PLATE
$1,050.00
Picture of REAR ROTOR BEARING

REAR ROTOR BEARING

IR R0H-24

IR R0H-24

REAR ROTOR BEARING
$21.00
Picture of SEAL

SEAL

IR R0B2J73-359

IR R0B2J73-359

SEAL
$15.00
Picture of CHUCK BODY

CHUCK BODY

IR R0H-925-4

IR R0H-925-4

CHUCK BODY
$890.00
Picture of LOCK NUT

LOCK NUT

IR R0H-588

IR R0H-588

LOCK NUT
$34.00
Picture of CHUCK KEY

CHUCK KEY

IR R0J-J253

IR R0J-J253

CHUCK KEY
$18.20
Picture of CHUCK

CHUCK

IR R0H-A925-4

IR R0H-A925-4

Quick Change Drill Adapter, 1/4" Chuck, 3/8"-24 Thread

$1,120.00
Picture of SWITCH-LED-PCB-BATTERY CONNECTOR MODULE

SWITCH-LED-PCB-BATTERY CONNECTOR MODULE

IR R1000-K93

IR R1000-K93

SWITCH-LED-PCB-BATTERY CONNECTOR MODULE
$58.00
Picture of COUPLING NUT

COUPLING NUT

IR R1000-27

IR R1000-27

COUPLING NUT
$15.00
Picture of PIN

PIN

IR R100BRC0-667A

IR R100BRC0-667A

PIN
$15.00
Picture of BEARING

BEARING

IR R100-24

IR R100-24

BEARING
$19.00
Picture of ANVIL ASSEMBLY FOR R1130

ANVIL ASSEMBLY FOR R1130

IR R1130-A44

IR R1130-A44

ANVIL ASSEMBLY FOR R1130
$26.00
Picture of RATCHET HEAD KIT FOR R1130

RATCHET HEAD KIT FOR R1130

IR R1130-TRK1

IR R1130-TRK1

RATCHET HEAD KIT FOR R1130
$119.00
Picture of GUIDE (49460-105)

GUIDE (49460-105)

IR R120-128-2

IR R120-128-2

GUIDE (49460-105)
$222.00
Picture of LOCKNUT (49450-61)

LOCKNUT (49450-61)

IR R120-126

IR R120-126

LOCKNUT (49450-61)
$41.00
Picture of GUIDE (49460-110)

GUIDE (49460-110)

IR R120-128-7

IR R120-128-7

GUIDE (49460-110)
$228.00
Picture of AXLE KEY

AXLE KEY

IR R13-.37-.43

IR R13-.37-.43

AXLE KEY
$15.00
Picture of PLATE

PLATE

IR R1401-11

IR R1401-11

PLATE
$164.00
Picture of END PLATE

END PLATE

IR R1400M3-12

IR R1400M3-12

END PLATE
$228.00
Picture of CYLINDER

CYLINDER

IR R1401-A3

IR R1401-A3

CYLINDER
$505.00
Picture of PLATE

PLATE

IR R1401-12

IR R1401-12

PLATE
$106.00
Picture of BEARING

BEARING

IR R1410-105

IR R1410-105

BEARING
$76.00
Picture of SEAL

SEAL

IR R1410-271

IR R1410-271

SEAL
$34.00
Picture of WASHER

WASHER

IR R1410-382

IR R1410-382

WASHER
$15.00
Picture of GASKET

GASKET

IR R1410-592

IR R1410-592

GASKET
$15.00
Picture of BEARING

BEARING

IR R1410-593

IR R1410-593

BEARING
$17.00
