IMPACTOOL
IR 290
IR 290
1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, Pistol
With a steel hammer case and metal housing, the 290 Series is built for heavy duty jobs. Through repeated drops in the garage or harsh outdoor weather conditions, this wrench will see you through every job.Features And Benefits
- Reliability: Built to last, the 290 Series will work like new every time you use it.
- Great Power-to-Weight Ratio: Thanks to the 290 Series’ jumbo hammer impact mechanism, these wrenches provide increased control without an increase of effort.
- 3-way Adjustable Handle: Designed for getting into cramped spaces with big power.
Product Application and Uses: Designed for getting into cramped spaces with big power and great for spring work, tractor pads, bus maintenance, off-road equipment, and farm equipment.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 55
Air Consumption @ Load (l/min): 1557
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 800
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.6 / 112.6
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Jumbo Hammer
Max Bolt Diameter (in): 1.25
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1600
Max Torque (in-lb): 19197
Max Torque (nm): 2169
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 9.75
Product Weight (lb): 21.9
Recommended Forward Torque Range (ft-lb): 150-1000
Recommended Forward Torque Range (in-lb): 1797-12002
Recommended Forward Torque Range (nm): 203-1356
Retainer Type: Thru-hole
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 22.7
Warranty: 1-year
Similar IR
- 280
$4,500.00

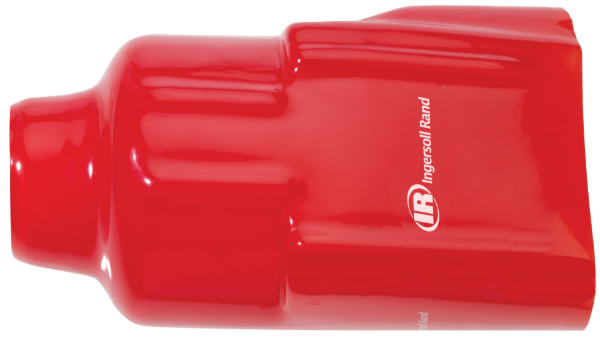

BOOT
IR 285-BOOT
IR 285-BOOT
Protective Boot for Ingersoll Rand 285B Series Impact Wrench
Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.Features And Benefits
- Protects surrounding surfaces from scratches, nicks ect.
- Protects tool from damage if dropped.
- Adds further protection from unwanted contaminates that can affect tool performance.
Color: Red
Housing Material: Thermoplastic Polymer
For Use With
- 285B
- 285B-6
- 285B-6-AP
- 285B-S6
$72.00

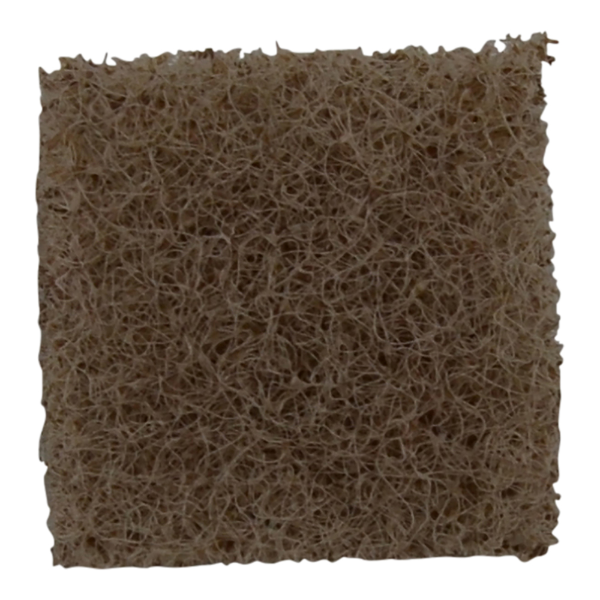

EXHAUST SILENCER
IR 2905P-311
IR 2905P-311
Exhaust Silencer for Ingersoll Rand 2905P Series, 2906P Series Impact Wrench
$15.00
HOUSING
IR 2920B-A40
IR 2920B-A40
Motor Housing Assembly Service Part for Ingersoll Rand 2920B Series Air Impact Wrench
For Use With- 2920B1
- 2920B9
$2,030.00
IMPACTOOL
IR 2925RB2TI
IR 2925RB2TI
1" Air Impact Wrench, 1500 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger
Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.Features And Benefits
- Titanium hammer case makes impact wrench both lightweight and durable.
- Twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
- Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
- Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
- Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
- Integral muffler.
Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 900
Color: Black
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
End Plates: Bronze
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Free Speed (rpm): 6500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Reverse Bias
Power Source: Air Powered
Product Length (in): 13.3
Product Height (in): 10.9
Product Weight (lb): 15.2
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: Full-size
Vibration Level (m/s2): 9.8
Vibration Uncertainy K* (m/s2): 1.3
Warranty: 1-year
$3,009.00
HORIZONTAL HANGER
IR 2934-366
IR 2934-366
Horizontal Hanger Service Part for Ingersoll Rand Impact Wrench
For Use With- 290
- 293
$146.00
SUPER DUTY IMPACTOOL
IR 2934A2
IR 2934A2
1" Air Impact Wrench, Super Duty, 1500 ft-lb Torque, Thru-hole Retainer, D-Handle Outside Trigger
The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.Features And Benefits
- Durability: This Series features an iron hammer case and metal housing that’ll withstand harsh conditions and drops.
- Reliability: Resistant to fluctuations in air pressures, this series will work just as well in any condition. Comes with a 1-year warranty.
- Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.
Product Application and Uses: This pneumatic impact wrench is especially suited for working on trucks, agricultural equipment, and other heavy duty machinery.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 47
Average Air Consumption (l/min): 1331
Blows per Min: 750
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.9 / 105.9
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1500
Max Torque (in-lb): 18002
Max Torque (nm): 2034
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.25
Product Width (in): 4.4
Product Height (in): 6.7
Product Weight (lb): 18.5
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Recommended Reverse Torque (ft-lb): 500-1099
Recommended Reverse Torque (nm): 678-1490
Retainer Type: Thru-hole
Side to Center Distance (in): 2.2
Side to Center Distance (mm): 56
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18.8
Warranty: 1-year
Similar IR
- 2920B1
- 2955B2
$5,800.00
HEX NOSE HAMMER CASE
IR 2934-A827
IR 2934-A827
Hammer Case Assembly Service Part for Ingersoll Rand 2934 Series Impact Wrench
For Use With- 2934A2
- 2934B9
$895.00
