When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits

SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls

Includes: Bare tool only; batteries and charger sold separately.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: No Display
Warranty: 1-year

Call for pricing

ROTARY TRANSDUCER

IR TR180S8

ROTARY TRANSDUCER

Call for pricing

TRANSDUCER, STATIONARY

IR TSD270S8

TRANSDUCER, STATIONARY

Call for pricing

Freedom RMC 180 BT (Torque Only)

SCS 123 23 0008

Freedom RMC 180 BT (Torque Only)

$6,932.00

Freedom SMC 10

SCS 123 25 0010

Freedom SMC 10

Call for pricing

Freedom SMC 250

SCS 123 25 0250

Freedom SMC 250

Call for pricing

Working Std. Angle Calibration

SCS WARII

Working Std. Angle Calibration

Call for pricing

INSIGHT QC CONTROLLER, D-TYPE, 115V, STANDARD

IR QCD11

INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
System Options: Standard IR Ethernet EOR MES option.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

Call for pricing

Insight QC Controller, 120V, Standard Plus Profibus Card

IR QCD12-F

INSIGHTqc™ Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

Call for pricing

Insight Qc Controller, D-Type, 115V, Profibus, Filedbus &Mes

IR QCD12-FM

INSIGHTqc™ Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

Call for pricing

INSIGHT QC CONTROLLER, D-TYPE, 220V, MES

IR QCD21-M

INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year

Call for pricing

Insight Qc Controller, D-Type, 220V, Profibus, Filedbus &Mes

IR QCD22-FM

INSIGHTqc™ Controller, 230V AC, Display, Standard Plus ProfiBus Card Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year

Call for pricing

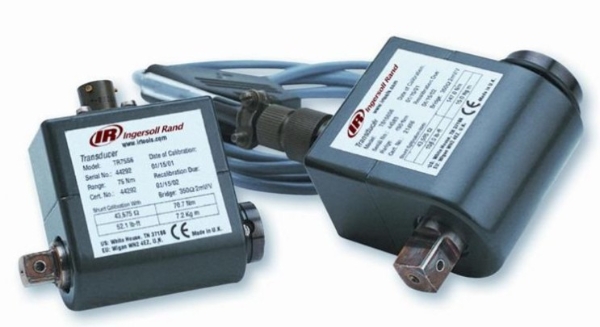

Rotary Transducer

IR TR75S6

Rotary Transducer

Call for pricing

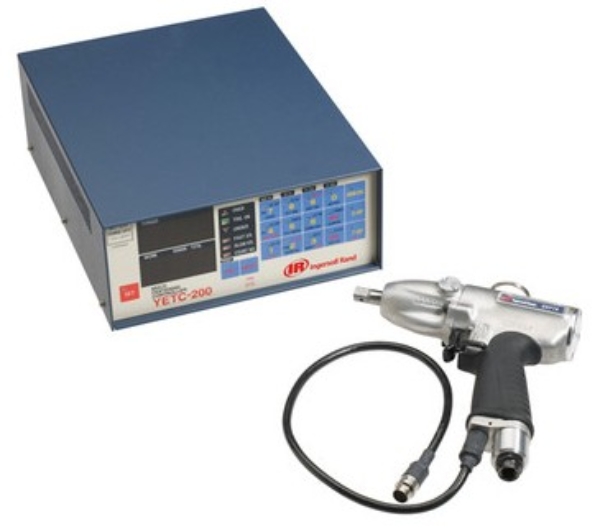

CONTROLLER

IR YETC-200ETB

CONTROLLER

Call for pricing

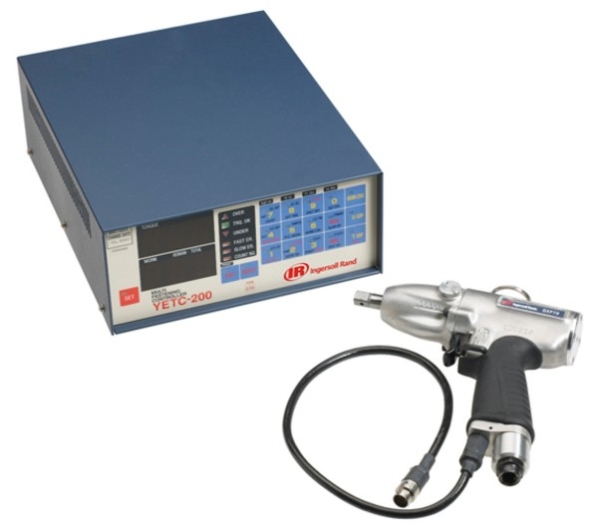

CONTROLLER

IR YETC-200ETB-4

CONTROLLER

Call for pricing

TT250io

STR 10012

Torque Transducers: L Series

Model	:	TT 250IO
Torque Range (cNm)	:	17.7 - 177 cNM
Torque Range (in-oz)	:	25 - 250 ozf.in
Square	:	1/4 in

Product Description

Built-in L-bracket for mounting perpendicular to your surface
Requires detachable cable Part: 10293
Mounting holes drilled for 5/16 bolts, 3.25 on center

$3,484.57

TT 1000

STR 10026

Torque Transducers: TT and STT Series

Model	:	TT 1000
Torque Range (ft-lb)	:	100-1000 lbf-ft
Torque Range (nm)	:	135.6-1355.8 Nm
Torque Range (kgf-m)	:	14-138.2 kgf cm
Square	:	1 in

Product Description

Traditional SR hex flange style
Can be mounted to ML 250 and ML 600 Mechanical Loaders
Can be Mounted to Quad Plate for multiple mounting on ML 250
Detachable cable (Part No: 10293) is required for all transducers
TT25IO, TT1000 and TT2000 include detachable cable (Part No: 10293)
Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket
Smaller sizes (up to 400 in. oz. capacity) can be mounted to SSMB, STMB, or UMB brackets

$6,470.58

ML1000, Mechanical Loader, 1000 Ft Lb

STR 10167

Mechanical Loaders: Mechanical Loaders, ft-lb

Model	:	ML 1000
Capacity (Nm)	:	1355 Nm
Capacity (ft.lb)	:	1000 lbf-ft

Product Description

Allows operators to precisely test and calibrate torque wrenches

$34,872.28
