CL CST6838

68 NM STATIONARY TRANSDUCER

$3,805.00

IR QC-SSD-32-K

SSD Assembly

Call for pricing

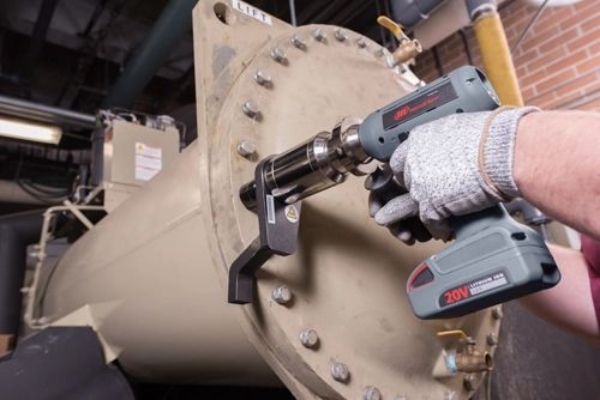

QX WIRELESS 40V MULTIPLIED 880 NM 3/4"

IR QXX2A52T0880PS12

QX WIRELESS 40V MULTIPLIED 880 NM 3/4"

Call for pricing

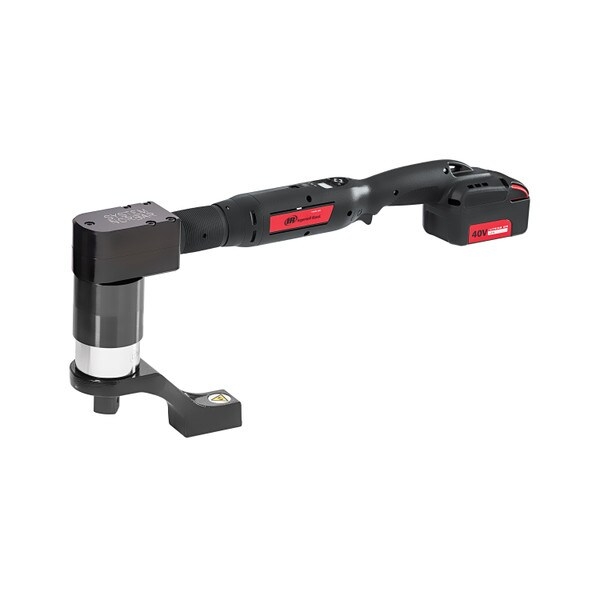

QX WIRELESS 40V 60NM MULTIPLIED 270NM

IR QXX5A45T0270PS12

3/4" 40V Cordless Angle Torque Wrench, 2390 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

Closed-loop transducer delivers a torque accuracy of +/- 5%
Enhanced quantitative feedback – displaying the actual measured torque or angle result
Integrated gearbox provides premium quality and accuracy
Brushless Motor offers maximum durability
Intuitive qualitative feedback using Green, Red, and Yellow indicators
360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
Standard or custom reaction arms available to match your application needs
Optional wireless communication for process control with I/O and data collections (USB connection standard)
1,200 cycles of onboard tightening data storage
Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 77
Max Torque (ft-lb): 200
Max Torque (in-lb): 2390
Max Torque (nm): 270
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 40-200
Recommended Forward Torque Range (in-lb): 478-2390
Recommended Forward Torque Range (nm): 54-270
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

Call for pricing

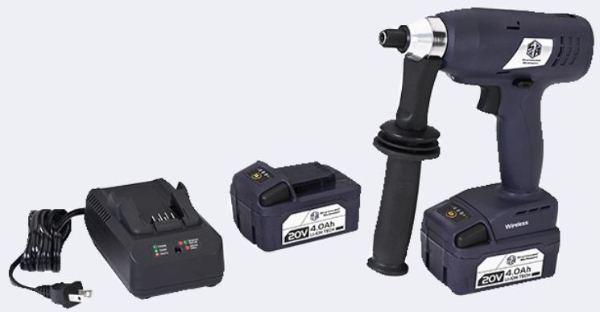

KIT 2200PTP-24 TRANSDUCER TOOL

STR SRT12053

Power Tools Kits: 20V Trasducerized Wireless Precision Tool, Kit, 24 Nm

Product Group	:	20V Trasducerized Wireless Precision Tool, Kit, 24 Nm
Model	:	2200PTP-24K
Capacity	:	6-24 NM
Speed (RPM)	:	1/4 in

Product Description

Ability to accommodate multiple torque and angle values
4 power tools can operate simultaneously with each control unit
Multiple speed strategy to ergonomically assist the operator
Communicates in clockwise and counter clockwise
Compatible with Global 400 / 400MP torque controllers
All torque and angle measurements are programmable using the Global 400, Global 400MP or Global Manager Software
Clear view of target value of the tightening
Good or bad result as value hit with OK/NOK on OLED display
Good or bad fastening indication with red or green LED display
Battery life indicator on the battery module
Batch count and batch size
Accuracy of +/- 10%
Kits include tool, 2 batteries, charger and side handle tool

Call for pricing

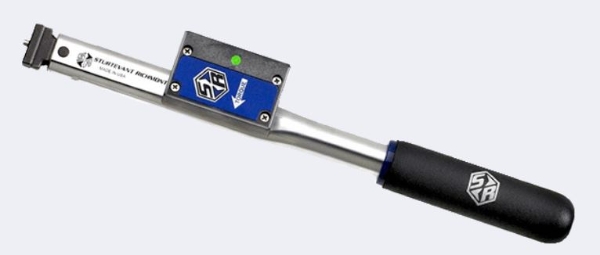

SLTC 300 I, Hardwired, 6.8 Nm - 34 Nm

STR SRT810855

Wireless Click-Type Torque Wrenches: Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb

Product Group	:	Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb
Model	:	SLTC 300 I - Hardwired
Torque Range (Nm)	:	6.8-34 Nm
Torque Range (in.lb)	:	60-300 in.lbf
Head Type	:	Dovetail

Product Description

Accuracy of +/- 4% of the preset value from 20% to 100% of capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Preset from the factory includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
Five of seven models use the incredibly strong SR dovetail and can be used with any of over 100 SR Interchangeable Heads
Tamper-resistant torque setting mechanism design facilitates setting and discourages unauthorized torque setting changes
Excellent audible and tactile impulse when preset torque is achieved
Lightweight and cushion grip provides excellent ergonomics
Slender body facilitates use in constrained-access applications
Microswitch closes when the tool clicks and opens immediately when pressure is released
Separate cable with a connector (required) facilitates replacement if damaged.

Call for pricing

Torque Tester, Universal

AIM AUET/MTM-100-1000

Torque Tester, Universal

Call for pricing

SQL Database App Tools V2.07, Software Digi AISI Transducers

AIM SMD TOOLS SOFTWARE

SQL Database App Tools V2.07, Software Digi AISI Transducers

Call for pricing

Torque Tester, Bench Mount, 3.0 - 30 NM

IR IQCTT-30

Torque Tester, Bench Mount, 3.0 - 30 NM

Call for pricing

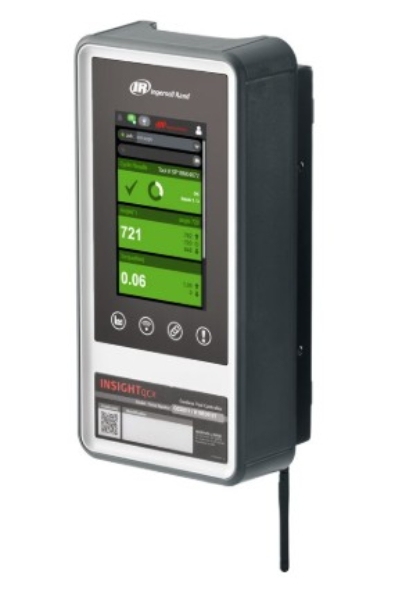

INSIGHTQCX CONTROLLER, DISPLAY, MES

IR QCXD11-M

INSIGHTqcx Cordless Controller, Standard Hardware, Display

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits

SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year

Call for pricing

QX WIRELESS 40V MULTIPLI ED 1080 NM 1 IN.

IR QXX5A72T1080PS16

1" 40V Cordless Angle Torque Wrench, 9559 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

Closed-loop transducer delivers a torque accuracy of +/- 5%
Enhanced quantitative feedback – displaying the actual measured torque or angle result
Integrated gearbox provides premium quality and accuracy
Brushless Motor offers maximum durability
Intuitive qualitative feedback using Green, Red, and Yellow indicators
360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
Standard or custom reaction arms available to match your application needs
Optional wireless communication for process control with I/O and data collections (USB connection standard)
1,200 cycles of onboard tightening data storage
Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 19
Max Torque (ft-lb): 797
Max Torque (in-lb): 9559
Max Torque (nm): 1080
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 159-797
Recommended Forward Torque Range (in-lb): 1912-9559
Recommended Forward Torque Range (nm): 216-1080
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

Call for pricing
