Motor
IR M007RVR000AR4
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 20000 RPM, 0.7 HP, 0.85 NM, Reversible
Features And Benefits- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.6
Max Torque (in-lb): 7.5
Max Torque (nm): 0.85
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 3.06
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Speed at Max Power (rpm): 10000
Standards/Certifications: ATEX
Starting Torque (ft-lb): 0.5
Starting Torque (nm): 0.64
Warranty: 1-year

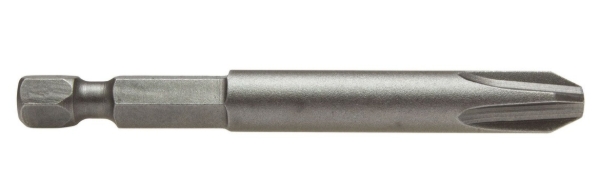

1/4 Hex Drive X #3 Phillips X 2-3/4
AX 493-AX
BIT 1/4 HEX PWR DR #3 PH 2-3/4" 70MM OAL1/4" Hex Power Drive
- Made in the USA - Quality and Availability
- Proprietary Steel and Heat Treat Process Yields Greater Strength and Longer Bit Life
- Cutting-edge Machining Process Results in Tighter Tolerances and Superior Product Consistency
- Better and More Consistent Fit to Fasteners Leads to Better Torque Transfer
- Power Bits Are Best Used With Quick-Release (QR series) Chucks
- Made in the USA - Quality and Availability
- Proprietary Steel and Heat Treat Process Yields Greater Strength and Longer Bit Life
- Cutting-edge Machining Process Results in Tighter Tolerances and Superior Product Consistency
- Better and More Consistent Fit to Fasteners Leads to Better Torque Transfer
- Power Bits Are Best Used With Quick-Release (QR series) Chucks
- Weight: 0.046 lb
- Drive: Hex Power Drive
- Fastener Type: Phillips
- Overall Length: 2.75 in, 70.0 mm
- Point Size: 3
- Set: No
RAC X LTX TIP, SPRAY, 513
GG LTX513
RAC X LTX TIP, SPRAY, 513
Graco LTX513 RAC X SwitchTip, 513
The Reverse-A-Clean (RAC) 513 RAC X SwitchTip produces a 10 to 12 inch fan and has a 0.013 inch orifice. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commercial or industrial applications.- Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
