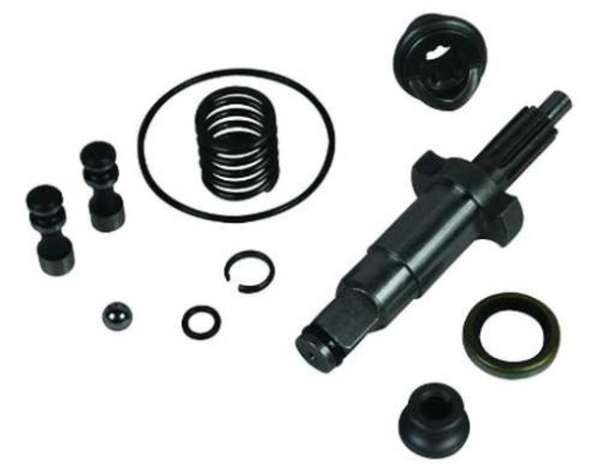

IMPACT MECHANISM KIT
IR 2100G-IMK1
IR 2100G-IMK1
Impact Mechanism Kit for Ingersoll Rand 2100G Air Impact Wrench
Includes:
$118.00

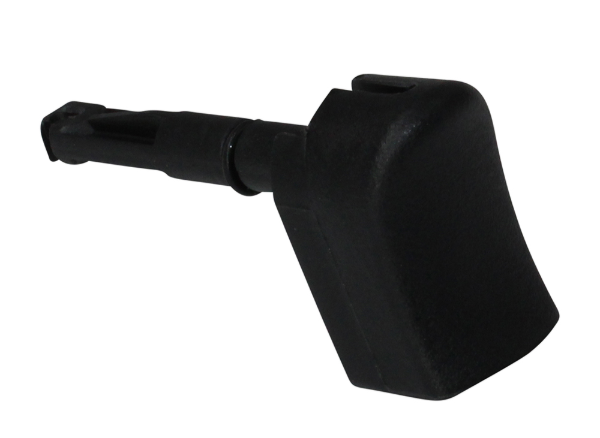

TRIGGER ASSEMBLY
IR 2130-D1093
IR 2130-D1093
Trigger Assembly for Ingersoll Rand 2130, 2100G Impact Wrench
For Use With- 2100G
- 2130
- 2130-2
$15.00
PIN
IR 2131-704
IR 2131-704
Pin for Ingersoll Rand 135, 2035, 2100, 2130, 2131, 2132 Series Impact Wrench
$15.00

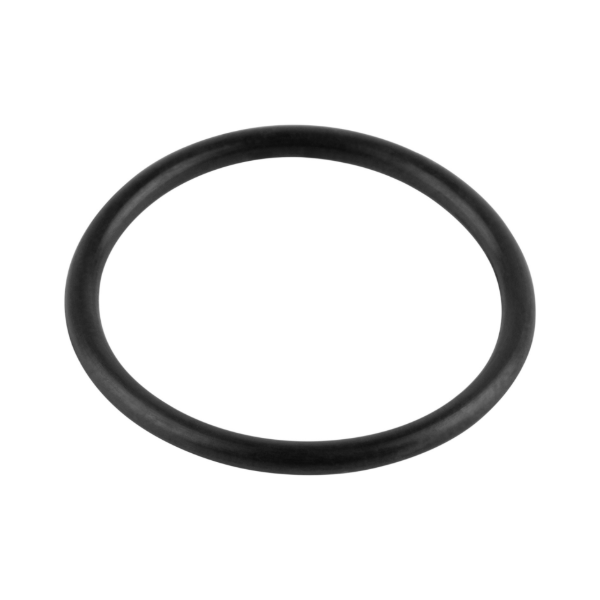

O-RING
IR 2141-168
IR 2141-168
Reverse Valve Assembly Service Part for Ingersoll Rand Power Tools
$15.00

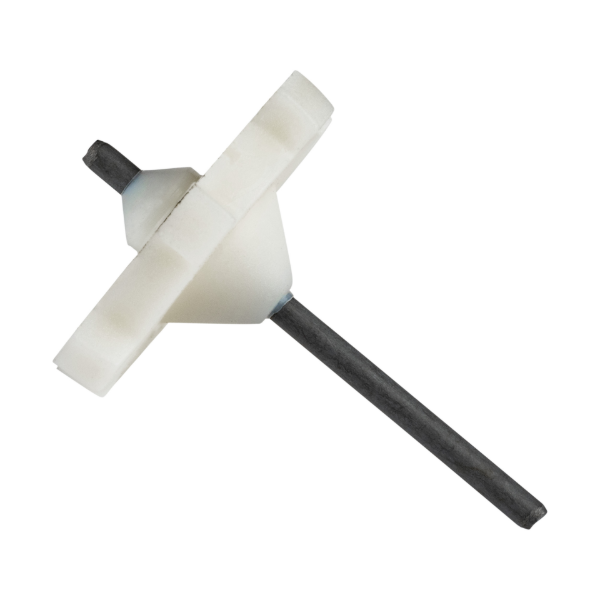

THROTTLE VALVE
IR 2141-302
IR 2141-302
Tilt Throttle Valve Service Part for Ingersoll Rand Power Tools
$15.00

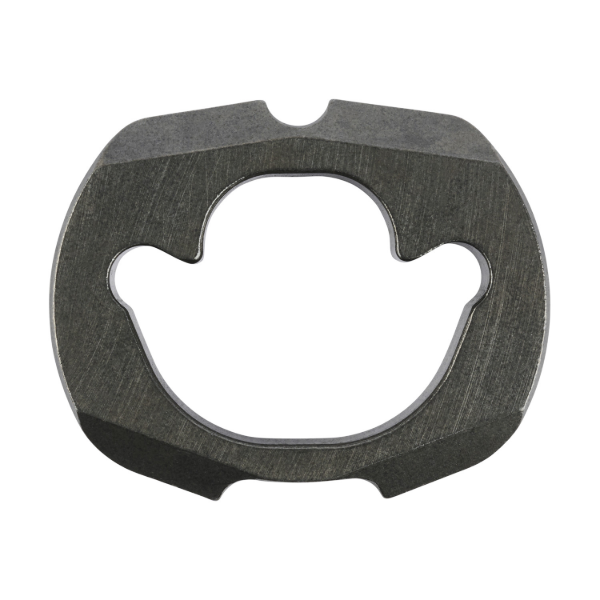

HAMMER
IR 2146-724
IR 2146-724
Hammer for Ingersoll Rand 2146 Series Impact Wrench
Product Application and Uses: For use with Ingersoll Rand 2146 Series Impact WrenchesSupersedes
- 2145-724
$58.00
THROTTLE VALVE SPRING
IR 231G-51
IR 231G-51
Throttle Valve Spring for Ingersoll Rand for 231G Series Impact Wrench
For Use With- 231G
- 231GXP
- 231GXP-K
$15.00
GRIP
IR 231G-747
IR 231G-747
Grip for Ingersoll Rand 231G Impact Wrench
For Use With- 231G
- 231GXP
- 231GXP-K
$15.00

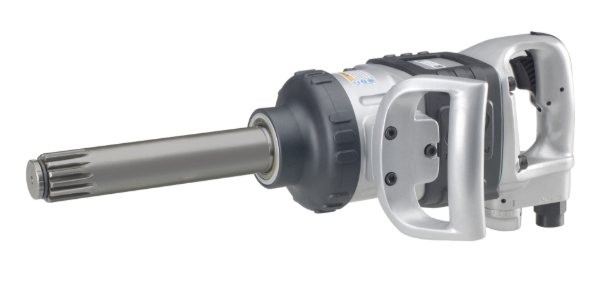

285B IMPACT WRENCH SPLINE EXTENDED
IR 285B-S6
IR 285B-S6
No. 5 Spline Air Impact Wrench, 6" Ext Anvil, 1770 ft-lb Torque, D-Handle Inside Trigger
The 285B Series Impact Wrench combines exceptional power, control and durability is great for any garage. They deliver 1,770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability.Features And Benefits
- Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
- Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
- Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
- Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
- Reach: With Multiple retention methods and a 6-inch extended anvil you access hard-to-reach spaces, while maintaining a strong connection to the socket.
- Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
- Speed: The impact wrench has a free speed of 5,250 rpm.
- Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.
Product Application and Uses: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO
Actuation/Throttle Type/Switch Type: Inside Trigger
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1727
Air Inlet: 1/2" NPT
Air Pressure (psi): 120
Anvil Length: 6" Extended
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 830
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): No. 5
Drive Type: Spline
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Hammer Case: Aluminum
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Rocking Dog
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5250
Max Torque (ft-lb): 1770
Max Torque (in-lb): 21242
Max Torque (nm): 2400
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 20.1
Product Width (in): 8.1
Product Height (in): 7.2
Product Weight (lb): 27.8
Recommended Forward Torque Range (ft-lb): 120-1080
Recommended Forward Torque Range (in-lb): 1443-12957
Recommended Forward Torque Range (nm): 163-1464
Retainer Type: Friction Ring
Sound Pressure/Power Db(A): 107/118
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 13.3
Vibration Uncertainy K* (m/s2): 2.1
Warranty: 1-year
Similar IR
- 280-S-6
$1,680.00
