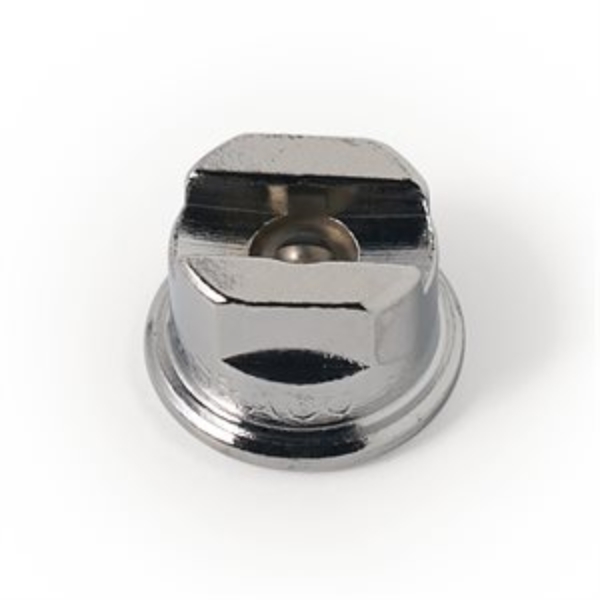

SILVER FLAT TIP, SPRAY TC
GG 163109
SILVER FLAT TIP, SPRAY TC
Graco 163109 Silver Flat Tip, 109
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 109 Silver Flat Tip has a 0.009 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.087
- Maximum Flow Rate (L/min): 0.33
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.009
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
SILVER FLAT TIP, SPRAY TC
GG 163111
SILVER FLAT TIP, SPRAY TC
Graco 163111 Silver Flat Tip, 111
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 111 Silver Flat Tip has a 0.011 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.13
- Maximum Flow Rate (L/min): 0.49
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.011
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
SILVER FLAT TIP, SPRAY TC
GG 163113
SILVER FLAT TIP, SPRAY TC
Graco 163113 Silver Flat Tip, 113
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 113 Silver Flat Tip has a 0.013 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.013
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
SILVER FLAT TIP, SPRAY TC
GG 163115
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 115 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 115 Silver Flat Tip has a 0.015 inch orifice and produces a 2 to 4 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
TIP, SPRAY TC
GG 163117
TIP, SPRAY TC
Graco 163117 Silver Flat Tip, 117
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 117 Silver Flat Tip has a 0.017 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.31
- Maximum Flow Rate (L/min): 1.17
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.017
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6

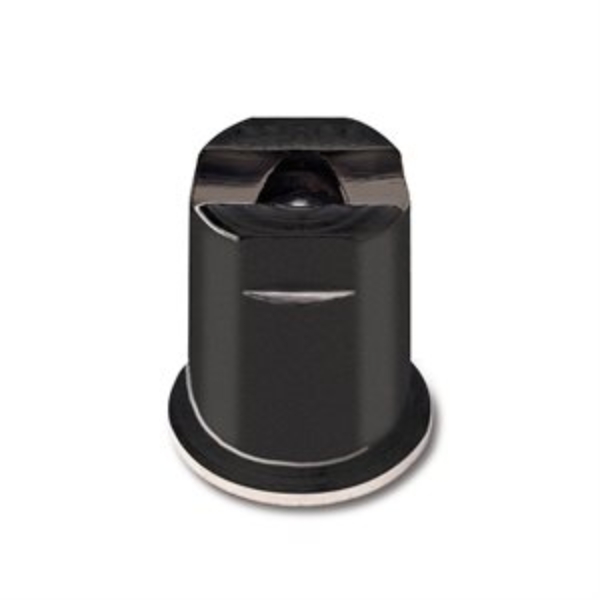

FF FLAT TIP, SPRAY TC
GG 163208
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 208 The 208 Fine Finish Flat Tip produces a 4 to 6 inch fan pattern and a 0.008 inch orifice.
FF FLAT TIP, SPRAY
GG 163210
FF FLAT TIP, SPRAY
Graco 163210 Fine Finish Flat Tip, 210
The 210 Fine Finish Flat Tip produces a 4 to 6 inch fan pattern and a 0.010 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.11
- Maximum Flow Rate (L/min): 0.42
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.010
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
